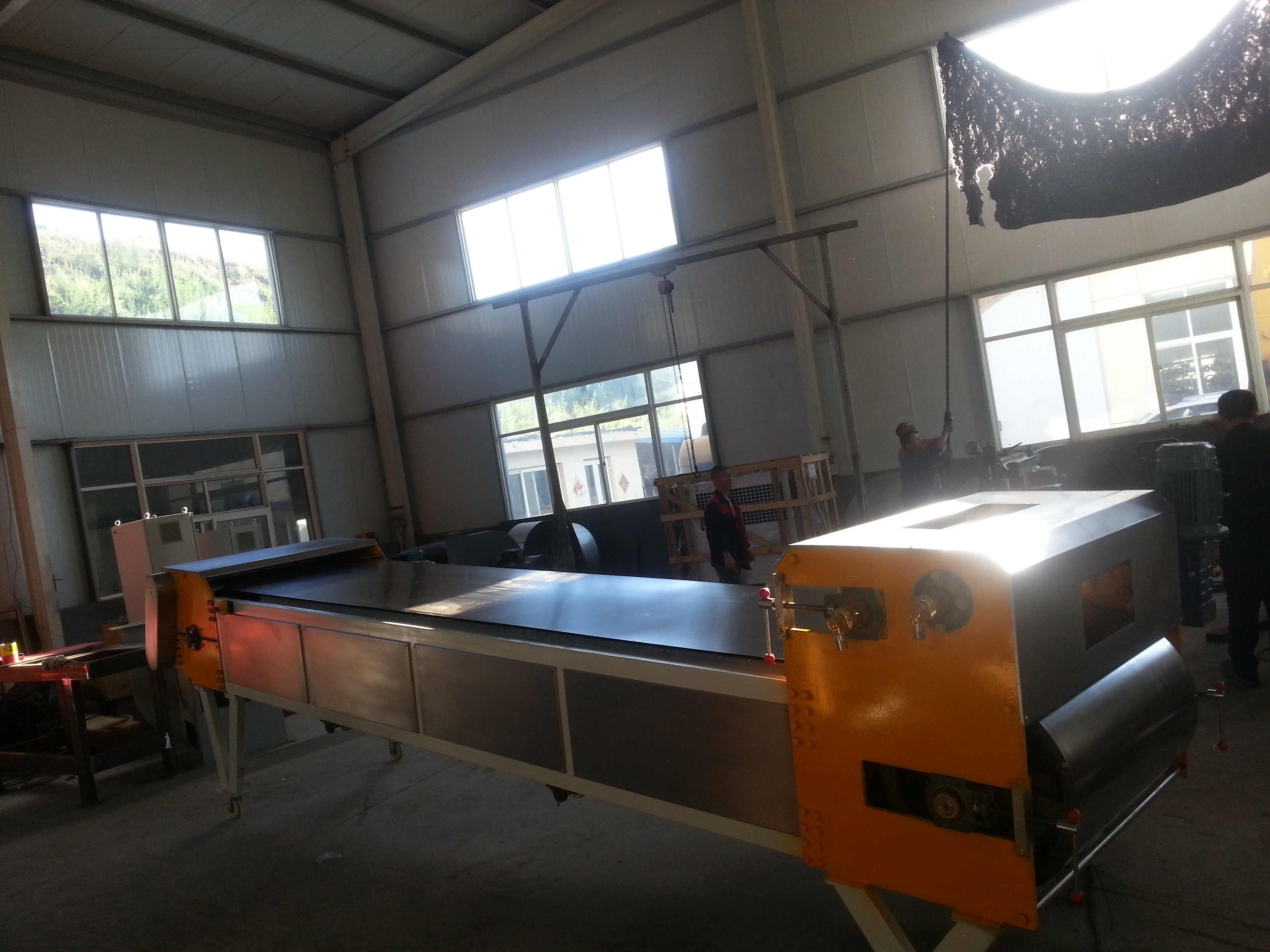

High Quality Steel High Speed Water Type Cooling Belt

stainless steel belt, standard rotating breaker and intermediate
drum diameter 800 mm having stainless steel covering and with
internal peripheral water circulation, complete of rotating joints
for cooling water’s inlet/outlet, suitable for coupling with steel
belt (double effect steel / drum). An adapt pneumatic device is
acting for wheel lifting

  • GDY
  • TOPSUN
  • 8477
Quantity:

Roller Cooling System

The roller cooling system is as shown

1. Main in-water box.

2. Main out-water box.

3. Press roller rotary joint.

4. Cooling roller rotating joint.

5. Press roller valve.

6. Cooling roller valve.

7. Plate heat exchanger valve.


The water supply system will pump less than 10 cooling

water, through the main in-water box, into the press roller and

the plate heat exchanger. The wate flow in the pres roller, the

cooling roller and the plate heat exchanger can be adjusted by

the valves. The water in the rollers and the plate heat

exchanger will flow back into the main out-water box.
