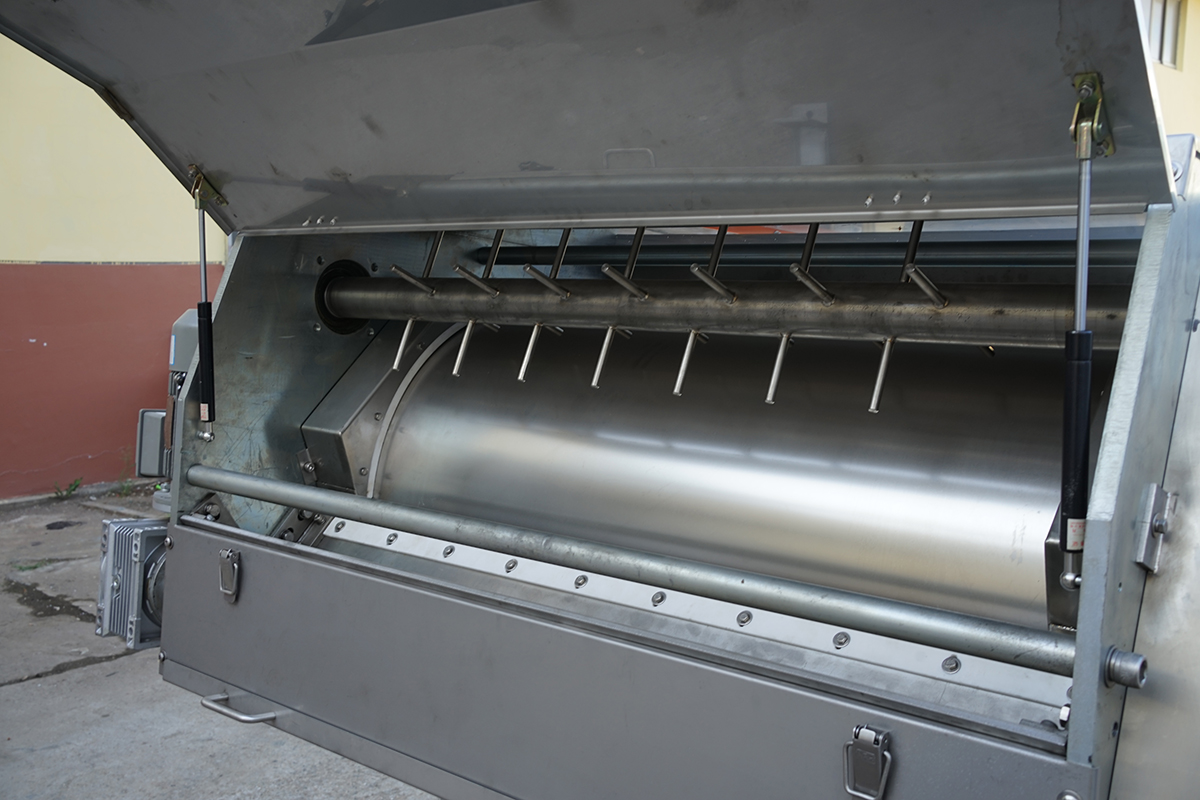

Rotating Breaker type compact breaker*:
➢ Protecting grids to be configurated
➢ Self-breaking electrical motor -matching voltage and hertz - IP55 protection
➢ Movable small container for residual chips collection
on the inferior part of breaker assembly
➢ Execution in stainless steel AISI 304
➢ Breaker casing with completely openable front door
for easy and fast cleaning
➢ Reversible protection grate with additional micro
switch for easier access
² Periodicly inspect the scraper of the roller and the belt. Because of
the friction, so adjust the gap between the belt and the scrapers; if
needed, replace the scraper regularly.
² Regularly inspect the water spatula under the belt, If necessary, just
adjust or replace.
² Regularly supply lubrication to the reducer and motor bearing.
check the main spare part instruction. Check the main specifications
of the fittings - worm gear reducer part (16th page), lubricants part.
- ABB Motor Manual Instructions (5th page), Seventh part of the
maintenance and lubrication.
² Regularly check the water filters, clean up debris in time or replace
² Regularly check the sealed point of rotary joint, clean up the debris
and scale in time.
² Periodicly inspect if the plate heat exchanger is clean.
² Regularly blow clean the equipment surface and controlling cabinet
by the compressed air.
² The maintenance of the key parts, please refer to the overhaul time
