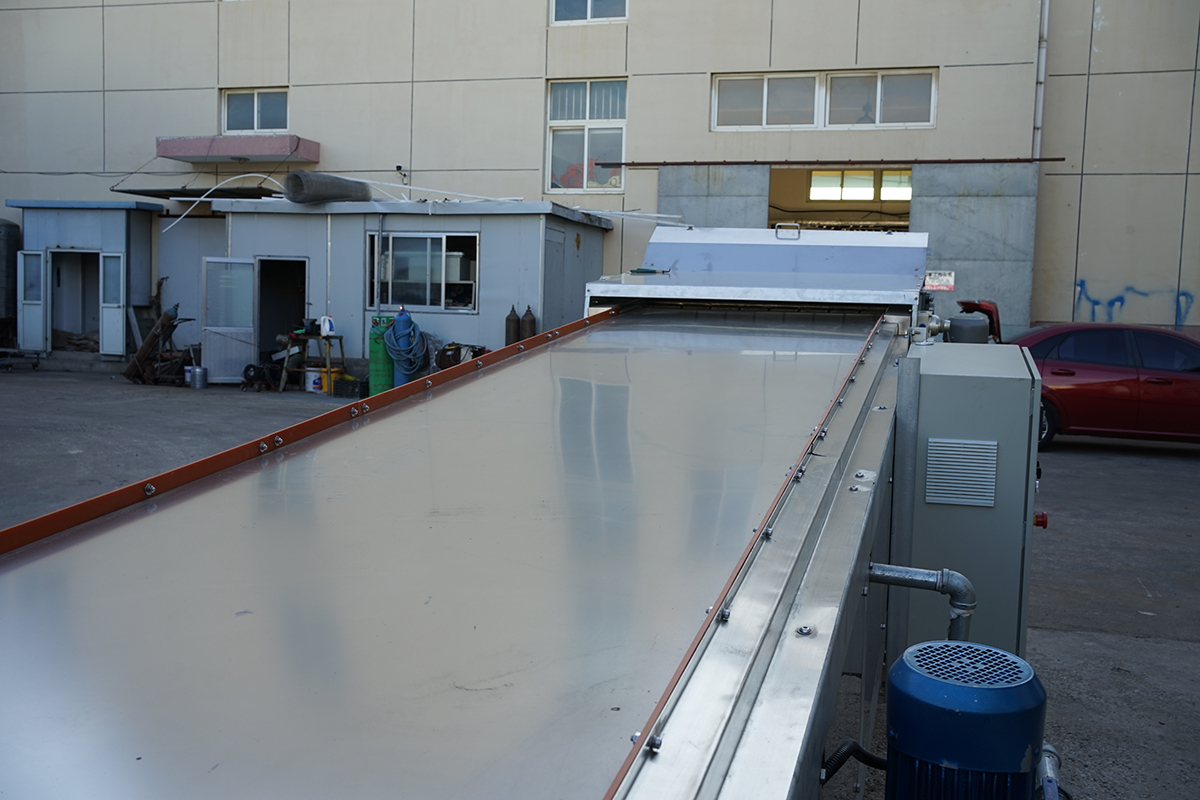

Durable Steel High Speed Water Type Cooling Belt

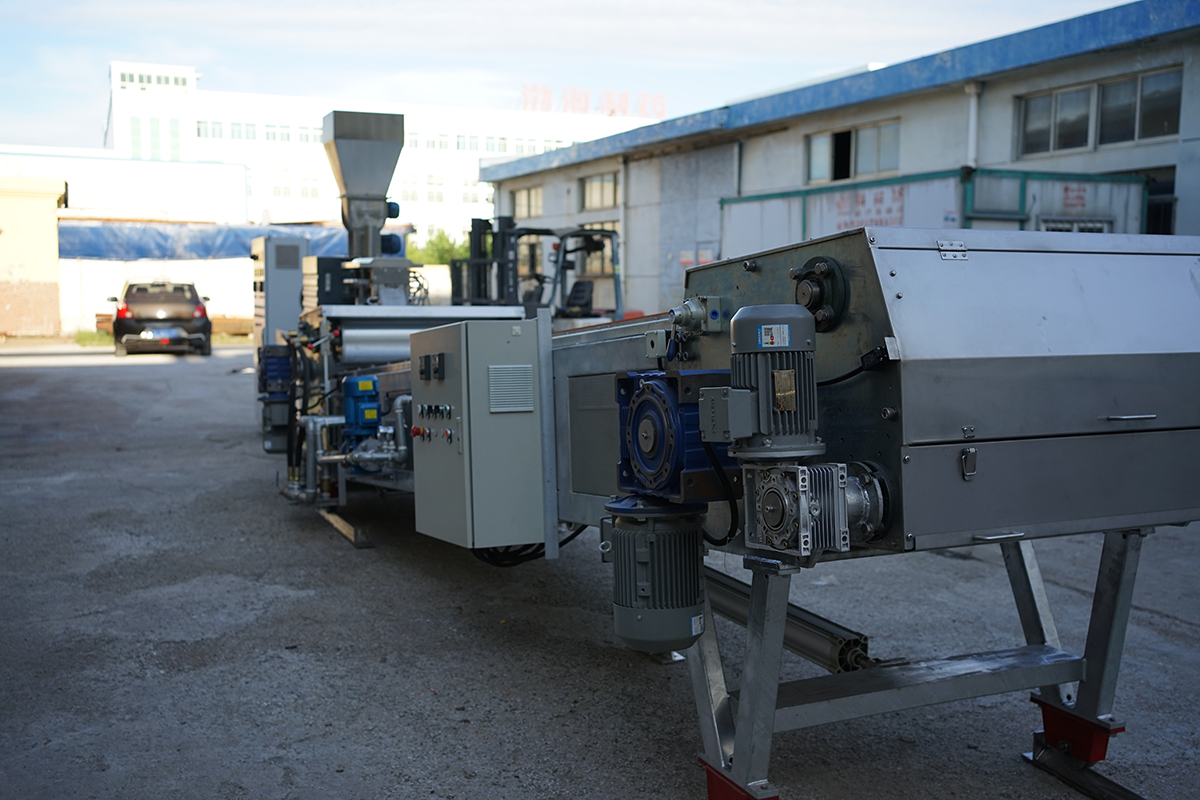

Driving station: in cast aluminum dia.600/800 mm, shaft, supports, suitable to be
driven by frequency converter.
➢ Tension station: in cast aluminium dia. 650 mm, shaft and
sliding supports
➢ Cooling zone: longitudinal tank made in stainless steel -
spray nozzles, internal water pipes in PVC material, belt
sliding supports in synthetic auto lubricated material

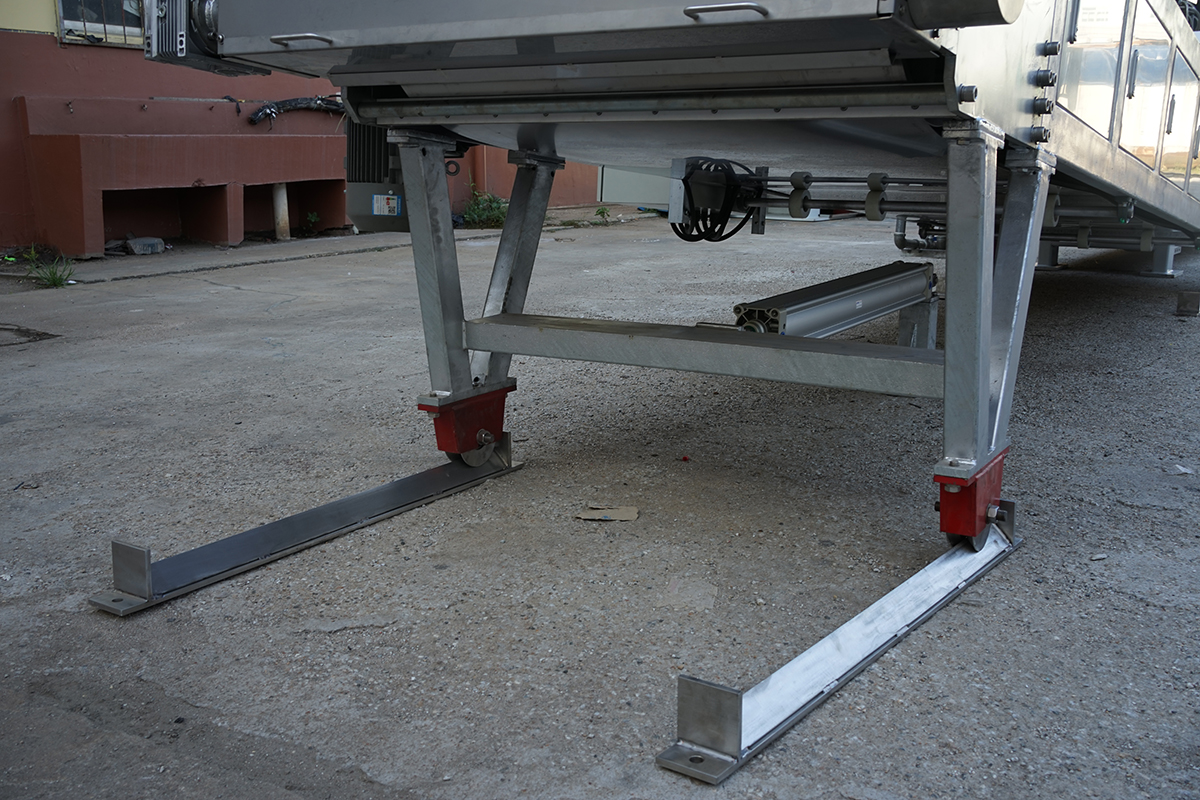

➢ Frame and finishing: in carbon steel profiles - epoxy
painted 2 + 2 coats, SBS colour turquoise blue RAL 5018
(unless differently agreed)
➢ Process Data:
• Water temp.: required 10°C at calendar rolls + cooled roll
• Water temp.: required 10-15°C at spray nozzles
• Flakes temp. at discharge: 30°-35°C
  • GDY

  • TOPSUN

  • 8477

Availability:
Quantity:

Clearance

During the clearance, the operator shall turn off the power supply,

open the roller shield, rotate the handle on the roller side and adjust the

gap between the roller t o50mm, gently scrape sticky materials on the

rollers by the flat copper spatula.

It is strictly prohibited to polish by grinding wheel or to tap on the

surface directly with a hammer! and then wipe clean on the roller

surface. The rest of surface shall be cleaned with cloth or compressed

air.
