the conditions are for ACM mill matching with correct capacity as follows:
1, Operating temperature ≤ 40 . ℃
2, Temperature of cooling water for mill ≤10 and its pressure ℃
must ≥2 bar and ≤3 bar
3, Standard formula of powder coating is Epoxy+Polyester.
4, Particle size distribution: 32-100 μm ≥62%.
5, Pressure of compressed air for cylinder should be ≥6 bar

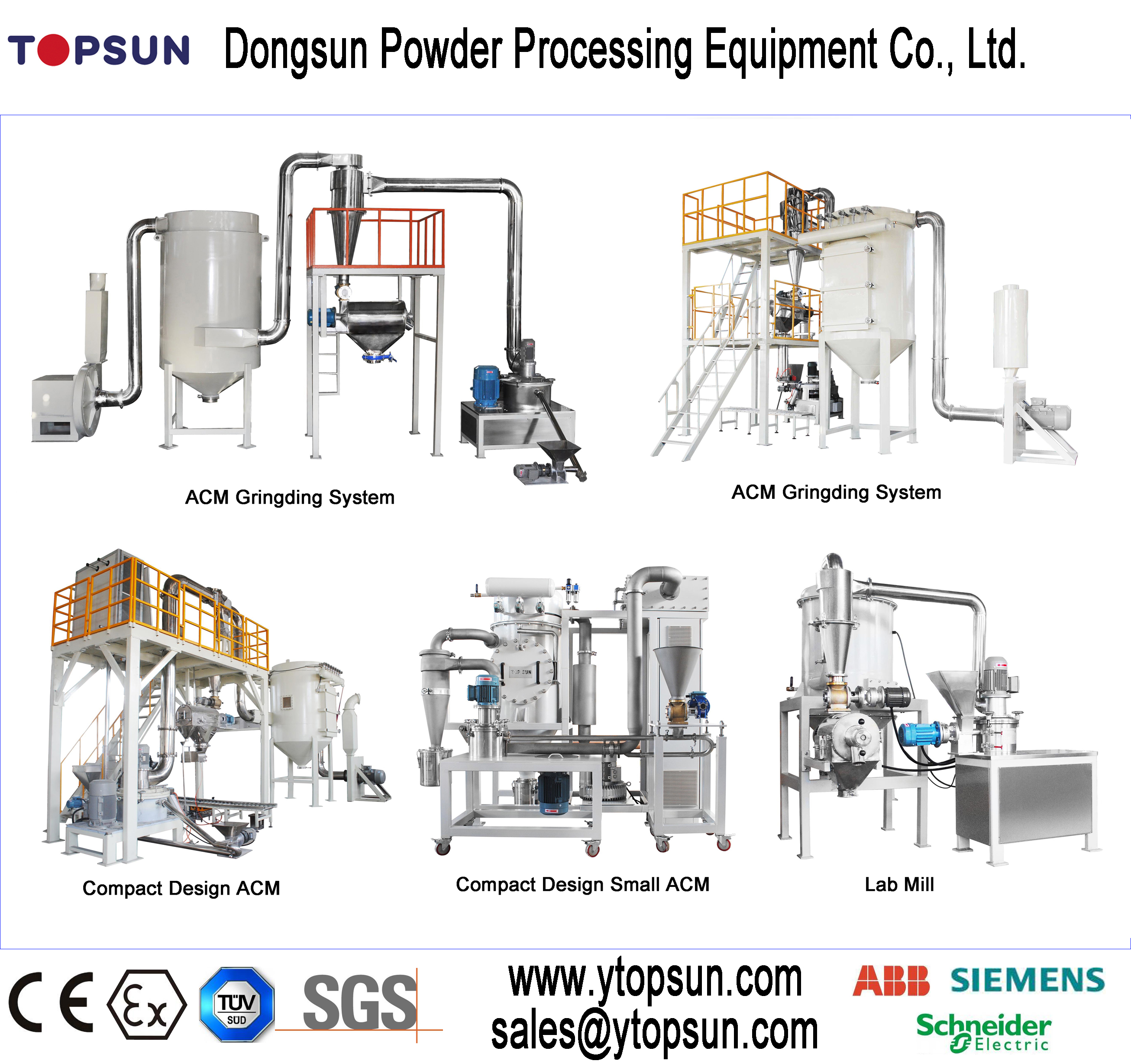

The grinding system of series ACM is shown on this website This system is
composed of chip container , feeder , grinder , cyclone ,
airlock(rotary valve) , centrifugal sifter , extra-fine powder collector
and induct draft fan 8. The micronized powder goes from grinder into
cyclone for separating according to the grain size. The products go down
to the centrifugal sifter through rotary airlock 5. The extra-fine powder
goes to the collector with filter bags .
