there is required a pre-mix feedstock for the
extruders that is a complete homogeneous mix of all the raw materials to be fed into the
extruder. These raw materials in thermosetting systems comprise of polymers generally of
low molecular weight, hardener, catalyst, cross-linking or curing agent, pigments and
extenders and flow control additives in a range of particle sizes >10micro-<10mm .
Solid grades of resin are used and these control properties such as melting
point, flow and film properties the resins having a softening point 68 - 1120 C are mainly
used for Powder Coatings and tend to be in flake or prill form.
The choice of curing agent to be used with the particular type of polymer is
influenced by its final application and cure and the properties required in the coating. The
hardener should be unreactive at room temperature remaining latent up to1000C and
should react fully at 1800C this reaction time must be balanced within the constraints of
good flow out of resin against the commercial considerations.
Pigment and extender-Pigments used in the manufacture of liquid systems are used for
powder coatings provided they are heat resistant, chemically inert and fast to light. The
exclusive use of Titanium dioxide for the manufacture of whites and light shades. Carbon
organic and inorganic pigments are used for blacks and greys; although emphasis is now
with the organic pigments as reduction in heavy metals is made. Inorganic extenders are
now used and incorporated in formulations and are usually of high specific gravity.
Formulations usually incorporate flow control agents to manage
powder coatings finished film effects and appearance during curing without them surface
defects would appear.
With the range of the above raw materials the formulations for modern powder coatings
can include less than twelve or more than twenty different materials in any one recipe. For
good processing of the pre-mix in the extruder we have stated that this pre-mix should be
homogeneous this requires a more intensely mixed reduced and dispersed uniform premix feedstock.
To obtain this homogeneity we must pre-mix the raw materials that have been previously
weighed in their component parts to allow a dry mixing of all the materials so they will feed
into the extruder feed system and provide consistent stream of mixed raw materials with
minimum segregation.

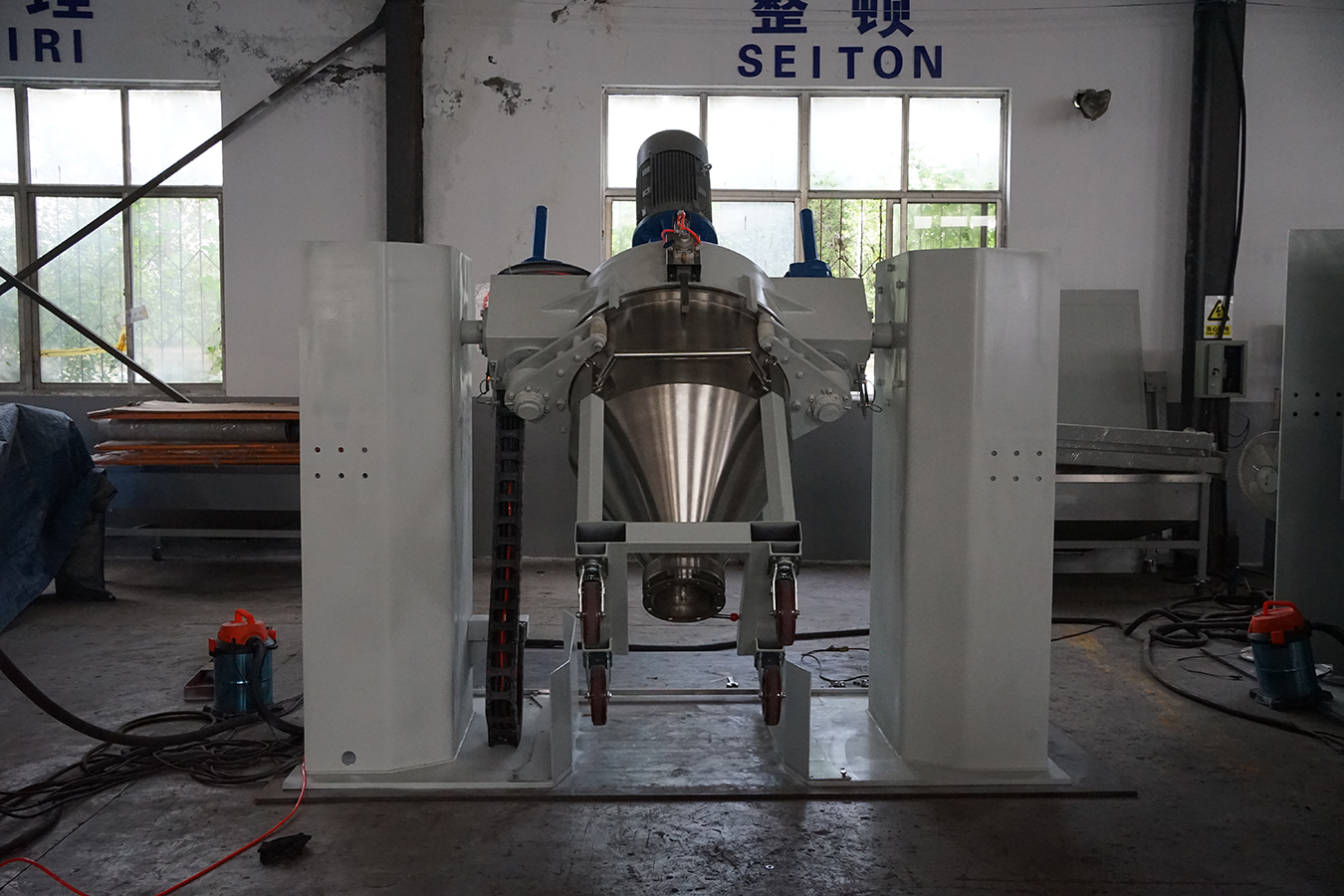

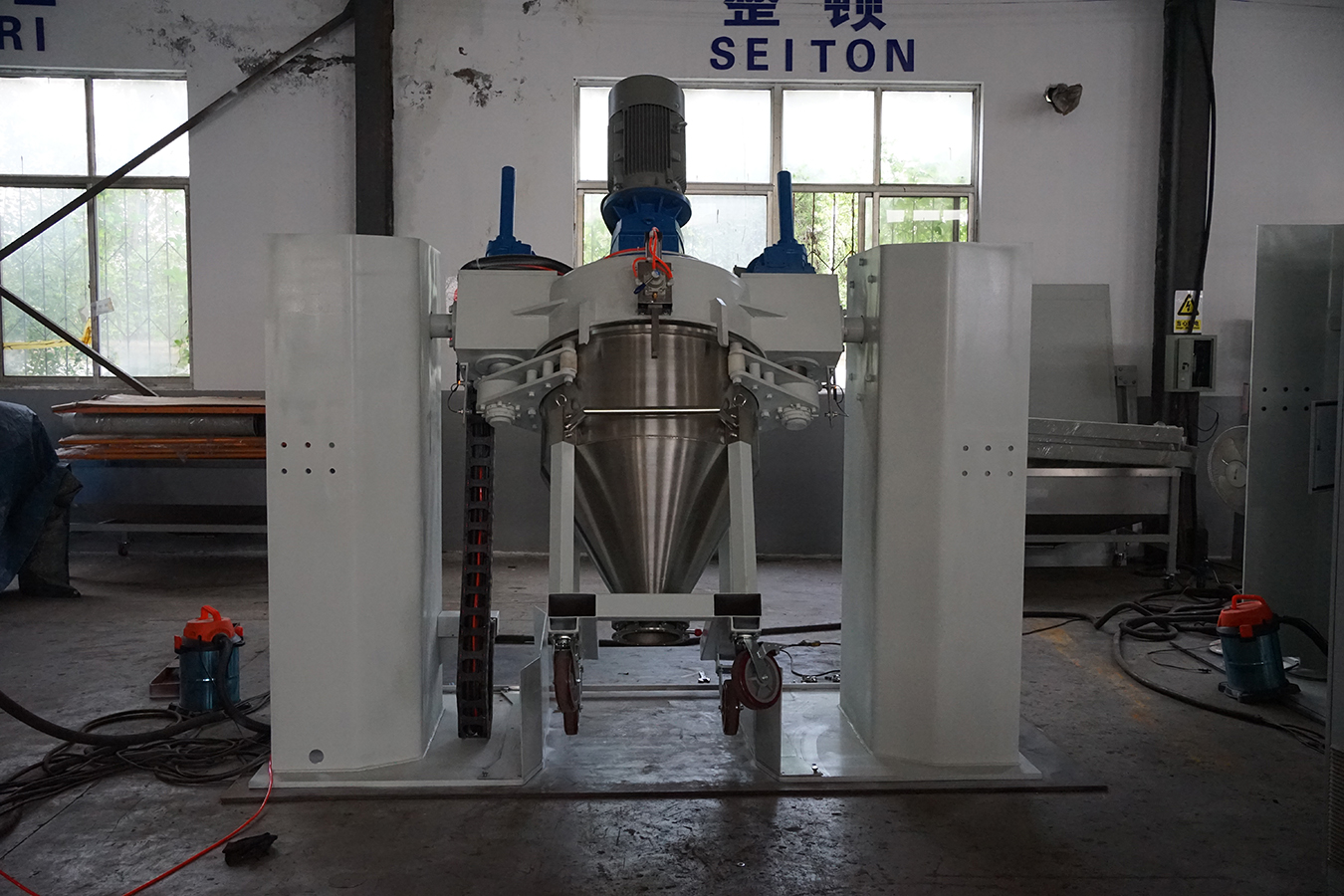

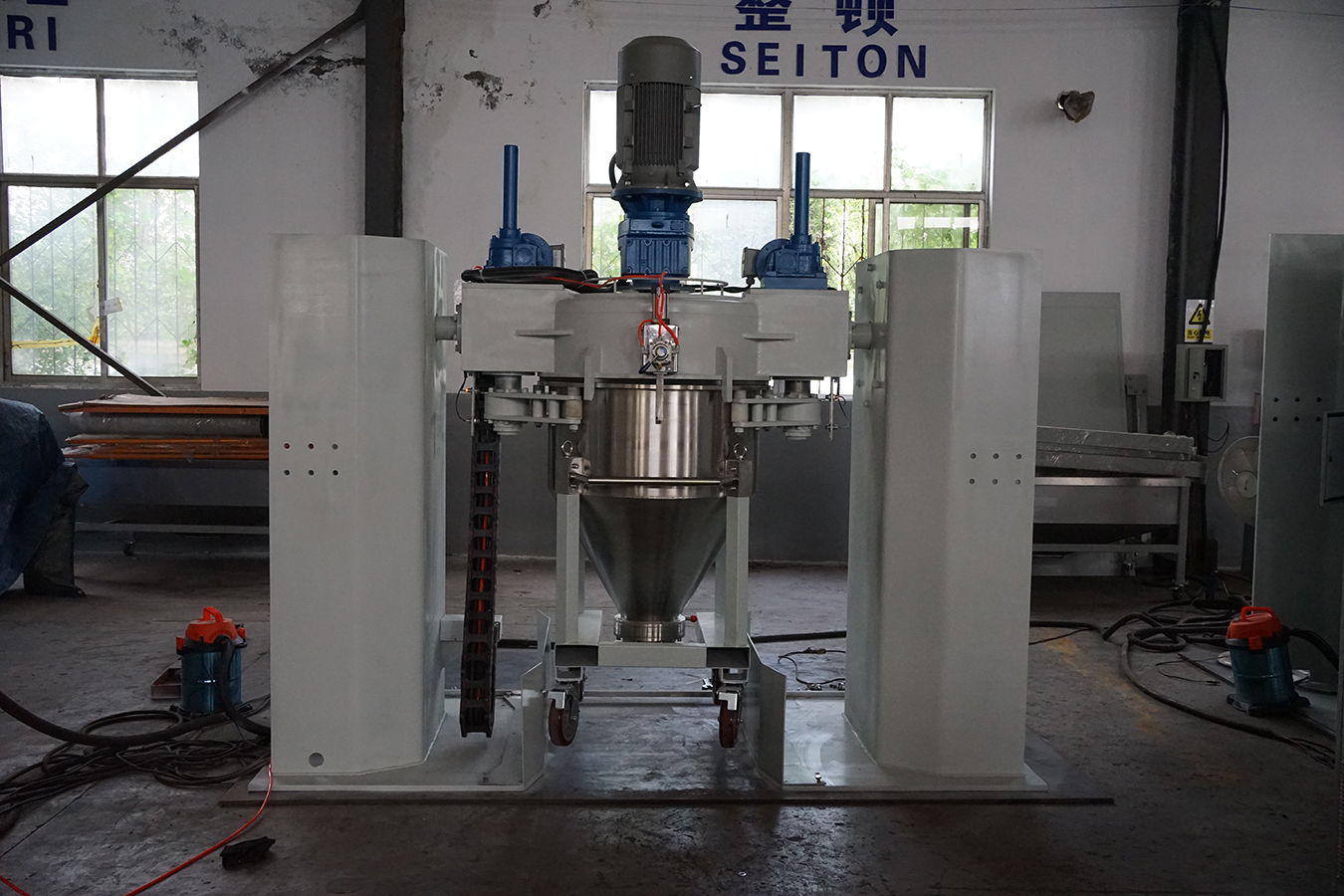

More trolleys attached together for continuous mixing with high efficiencies.
All actions are with fully automatic PLC controlled
Homogenous mixing result without curing particles
Easy cleaning and few maitenance
Securely safe operation for on site operators
Mixing head with water jacket as optional
Mixing blade as single or double for option, evern for double mixing blade, optional for synchronous or varied speed.
Pneumatical or mechanical programming for involved actions as optional
