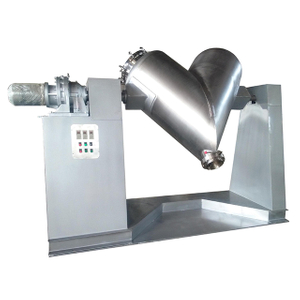

Horizontal SS 304 Horizontal V Shape Mixer

The V Shape Mixer for solids and powders is used to produce a gentle and fluid mixture, moving equal portions of particles by gravitational force. It is suitable for mixing solids in short periods of time. Their design and finishing allow easy unload and cleaning.

Innovative high quality-equipment certified by accredited entities.
Fully designed and built in Europe following regulatory requirements and GMP´s normative.

■ Standard equipments with capacities ranging from 25 L to 3.000 L. [Other dimensions on request.]
■ Standard loading range from 25% to 50% of container volume.
■ Equipped with PLC Siemens and operator interface by PC Panel.
■ Security barriers installed in the cleanroom.
■ Speed control by inverter.
  • V
  • 8474

How It Works:

 V shaped Mixer has a "V" chamber made up by two cylinders. Powders and granules are fed into the V chamber either manually or by a vacuum conveyor.

A gear motor drives V chamber to roll in 360 degrees. This multi-dimensional motion makes the powders and granules inside tumbling up and down and colliding to each other all the time, and achieve uniform mixing in short time.

Features & Options:

The simplicity of design of the V shaped Mixer allows a low initial cost, easy maintenance and simple operation. It is available from the 2 liter laboratory to large industrial 6000 liter units. The PerMix PVM series V shaped Mixer can be supplied with a variety of accessories, including:
  • Internal choppers
  • Vacuum/Drying execution
  • Special spray unit
  • Special safety fence
  • Mobile trolley


V shaped Mixers are widely used in pharmaceuticals, colors, plastics resins, food products, ceramic glazes, metal powders, cosmetics, detergents, insecticides, explosives materials, and a lot of others.

- Pharmaceuticals

Supplements, Active ingredients, Silica, Sugar, Tablet coating

- Chemicals

Graphite, Alumina, Inorganic powder, Dye stuff, Silica, Adhesives, Agricultural supplements, Plastic powders, Colored cement mixes, Glass ingredients, Insulation materials

- Food & Beverage

Sugar, Aspartame, Fragrance, Spice, Dextrin, Chocolate mixes

- Cosmetics & Daily Care

Baby powder, Tooth paste, Cosmetic creams, Detergents, Cleaning compounds
